LEDetect 96

              Innovative Instruments Absorbance Reader



Quality  *  Affordability   *   Reliability

Sold and serviced by Innovative Instruments Inc.


LEDetect96

Innovative Instruments LEDetect96 is a state-of-the-art microplate absorbance reader equipped with up to six intelligent LED plugin wavelengths.  Each LED plugin contains a light source, unique digital ID, lens and filter in an easily  exchangeable module.

Download a product brochure  in PDF here

Unrivaled Optical Performance

The LEDetect96 uses state-of-the-art  LED technology rather than old-fashioned Halogen lamps.  Modern LED's are known for their extremely stable, high energy, output that far outlasts the short lifespan of Halogen bulbs.

Very Low Power  Consumption

The LEDetect96 uses a maximum of 12 watts during operation.  The low power consumtion saves money, generates less heat, and is better for the environment.

Speed

The LEDetect96   measures 96-well plate at dual wavelengths in less than 10 seconds.

Easily Add New Wavelengths (6 total)

The LEDetect96 includes four standard wavelengths:  405, 450, 492, and 620nm.  Two aditional LED plugins may be added for any wavelength between 370 and 750nm

 Capture 96  Software

The LEDetect96 includes "Capture 96" Windows-based communication software package that measure single, dual, kinetics, etc., and transfers data to Excel or any stadard software..






LED technology

Unrivaled optical performance

Intelligent LED-plugins

UV ready (340nm)

Easy and safe operation

Computer controlled

MikroWin2000 compliant

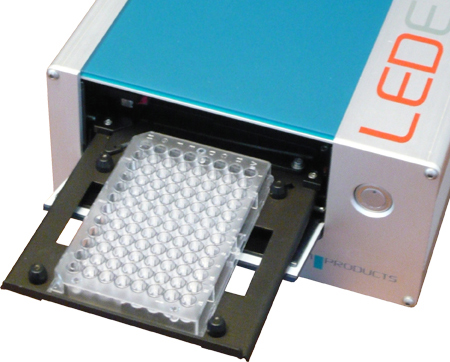

LEDetect tray open

Parameter     Value
Plate Types
96 well
Optical system
8-channel Transmission Photometer
Light source
Digital controlled LED lamps, wavelength specific
Photodetector
8 silicon Photodiodes
Wavelength range
340 - 750nm (special wavelengths up to 900nm)
Resolution
0.1 mOD (0.0001 OD)
Indication range
0.000 - 4.000 OD (Abs)
Accuracy Better than ± 1% and ± 0.005 OD up to 2.5 OD
(any wavelength)
Linearity
±0.5% or ±0.005 OD 0.1 - 1.5 OD (any wavelength)
Less than ±0.75% from 1.5 - 2.5 OD (400nm – 750nm)
±0.75% and ± 0.005 OD from 0.1 - 2.0 OD
(340 -400 nm)
Reproducibility
Better than ±0.3% at 1.0 OD (any wavelength)
Better than ±0.5% at 2.0 OD (400-750nm)
Measurement Mode
Single and dual wavelength,
Linear scan (30 points/well) for agglutination etc.
Reading speed
5 seconds (kinetic interval, single wavelength)
10 seconds (96 well, dual wavelength)
Wavelengths
4 wavelengths included  (405, 450, 492, 620nm)
up to 6 possible (340 – 750)
Shaking
4 speeds
PC-Interface
USB 2.0 (USB 1.1 compatible)
PC Software
Capture96 included
MikroWin2000 test version included
Dimensions
23cm x 12cm x36cm (W x H x L)
Weight
6.7 kg net
Housing
Anodized Aluminium
Power Supply
External power adapter 100-240V,
50 or 60 Hz (autosensing), 24VDC, 2.5A

(approved to EN 60601-1-2, EN 61000-6-3,  EN 61000-6-1, EN 60601-1, EN 60950)
Scope of Supply
Power adapter , USB Cable, 4 Standard Wavelengths, User Manual (CD), Capture96 Control Software, MikroWin2000 Connect (demo version)
